The Fondarex Modular provides intelligent and
precise vacuum process control

Configurable to your needs and upgradable at any time.
It can be integrated to any DCM

Intuitive innovation, the new user interface is the
perfect combination of simplicity and ingenuity

Quick maintenance, stay focus on your process

    • Fondarex
Modular
Mobile 500

      Fondarex
      Modular
      Mobile 500

    • Fondarex
Modular
Mobile 750

      Fondarex
      Modular
      Mobile 750

    • Fondarex
Modular
Mobile 1000

      Fondarex
      Modular
      Mobile 1000

  • Modular
Cell / Central

    Modular
    Cell / Central

Modular
Cell / Central

Allows you to independently place up to 6 vacuum channels

Configurable to your needs and upgradable at any time.
It can be integrated to any DCM

Intuitive innovation, the new user interface is the perfect
combination of simplicity and ingenuity

Quick maintenance, stay focus on your process

Servicing DCM up to 6’000 t

    • Fondarex
Modular
Cell / Central

      Fondarex
      Modular
      Cell / Central

Options
for
Modular

INDUSTRY 4.0
A new way to manage, ­communicate and treat the data through integrated vacuum process statistic and quality ­reports. This option includes the Web Dashboard to follow your production from your laptop.

REAL TIME VACUUM CONTROL
The butterfly valve controls ­precisely the evacuated air flow. The high-speed control is done independently through each vacuum channel.

AIR FLOW MEASURE AND
AIR QUALITY MONITORING

The module measures the ­evacuated air flow and air volume per vacuum channel. At the same time, the air quality is controlled by optical ­measurement.

INDIVIDUAL VACUUM CHANNELS (UP TO 6)
The individual vacuum channel box can be placed wherever needed around the DCM. It allows to work as close as possible to the mold.

REMOTE CONTROL PANEL
Always keep an eye on the vacuum process data by ­locating the remote control panel as close as possible to the operator.

ID-KEY
The ID key enhances the ­parameters and data security with up to four different access levels, one dedicated key for each level.

For
each situation
a solution

FONDAREX
MODULAR
MOBILE
Interchangeable from one DCM to another

FONDAREX
MODULAR
CELL

Optimized cell integration
All elements can be placed easily around the DCM for the most efficient configuration

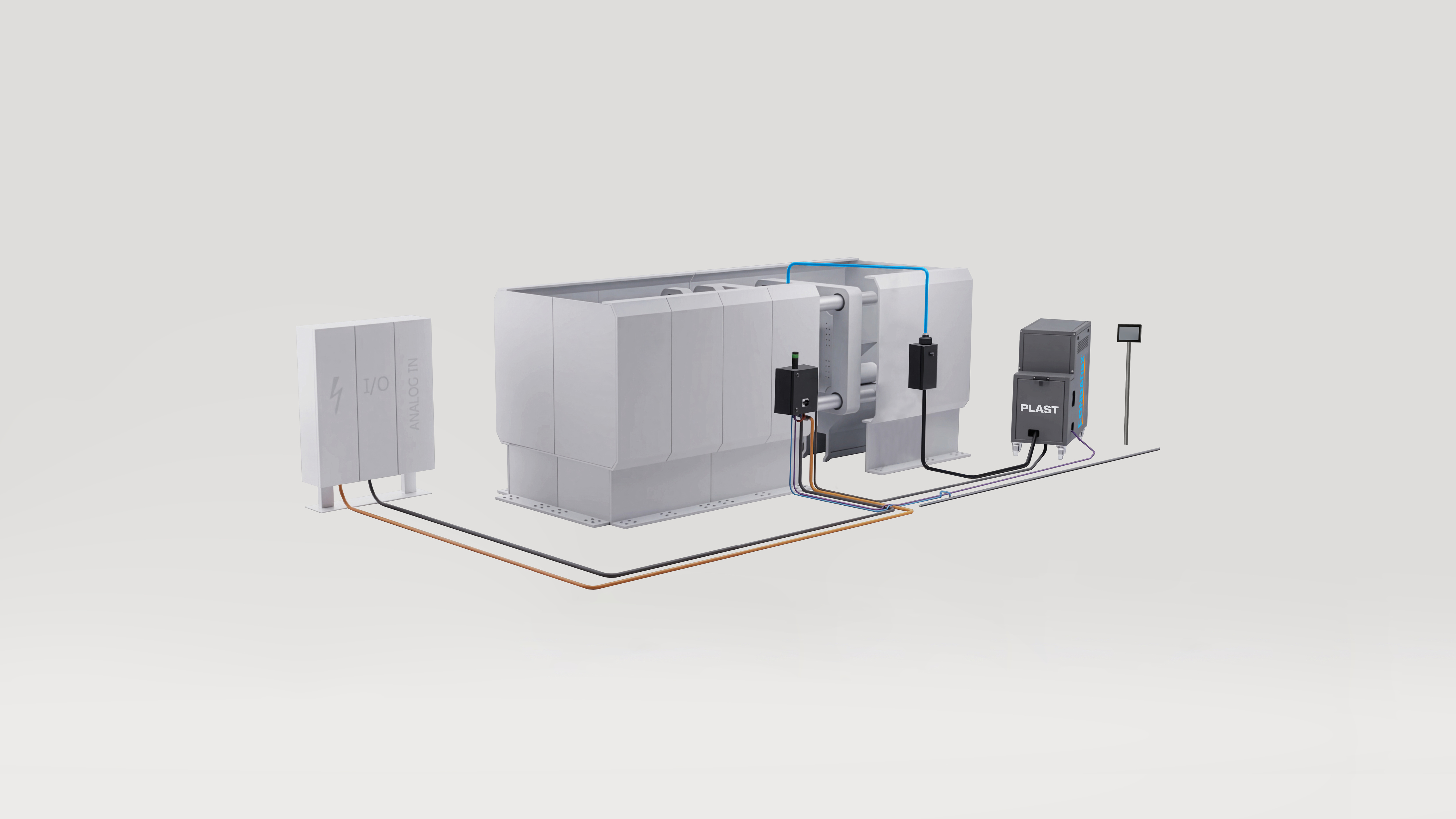

FONDAREX
MODULAR
CENTRAL

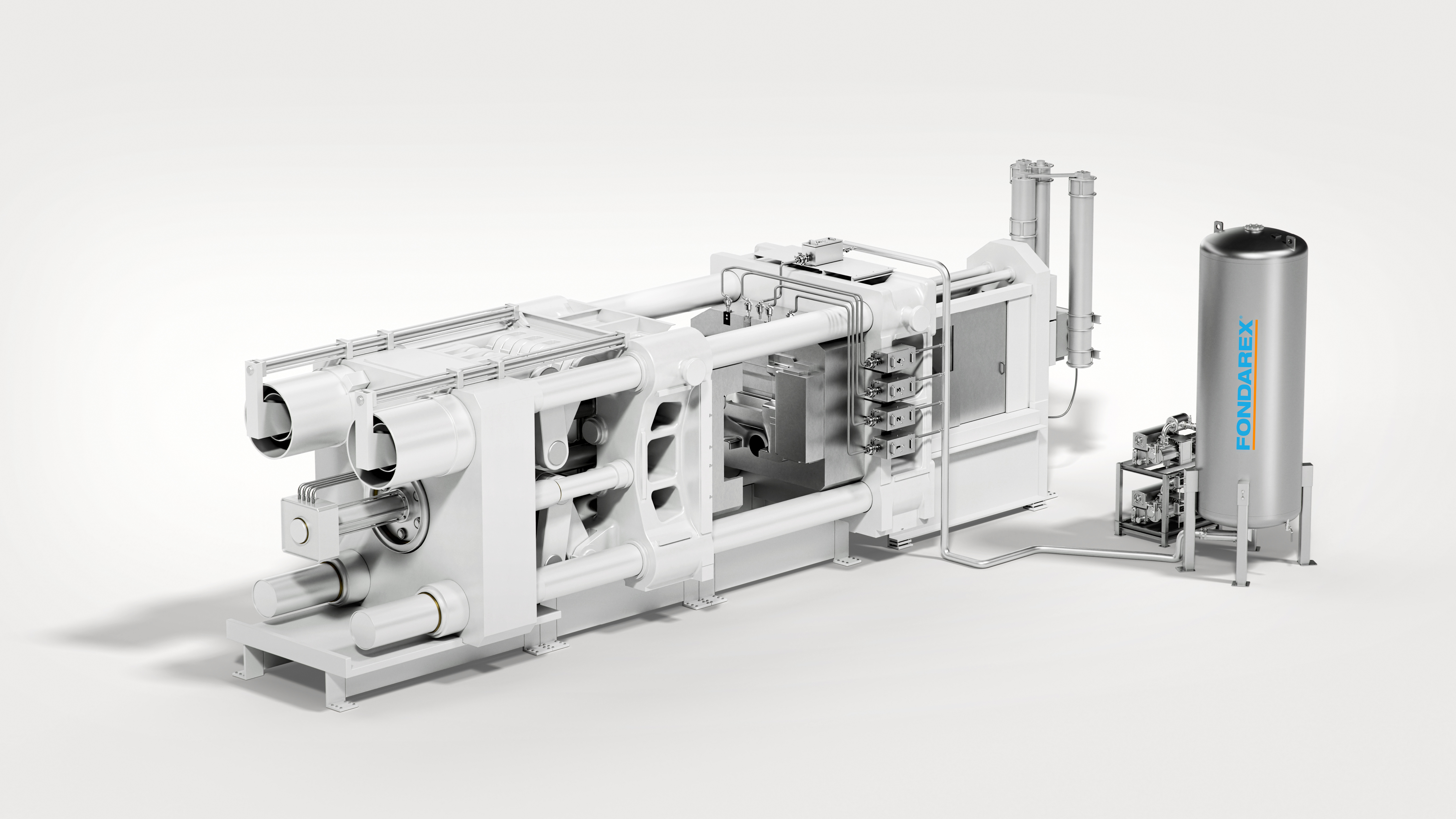

Centralized tank and pump stand for all DCMs
